📋Overview & Basic Info

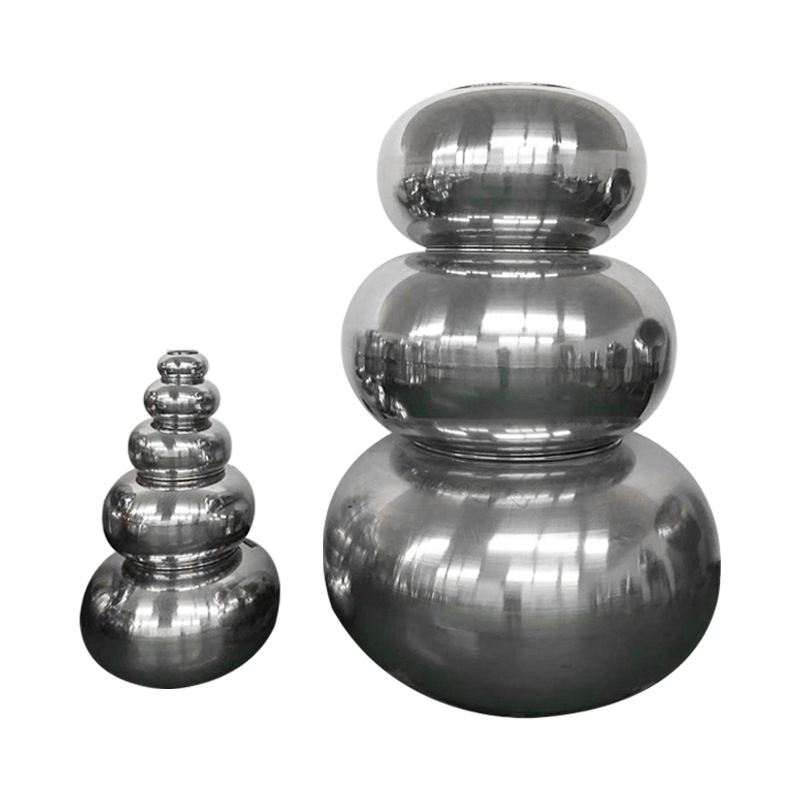

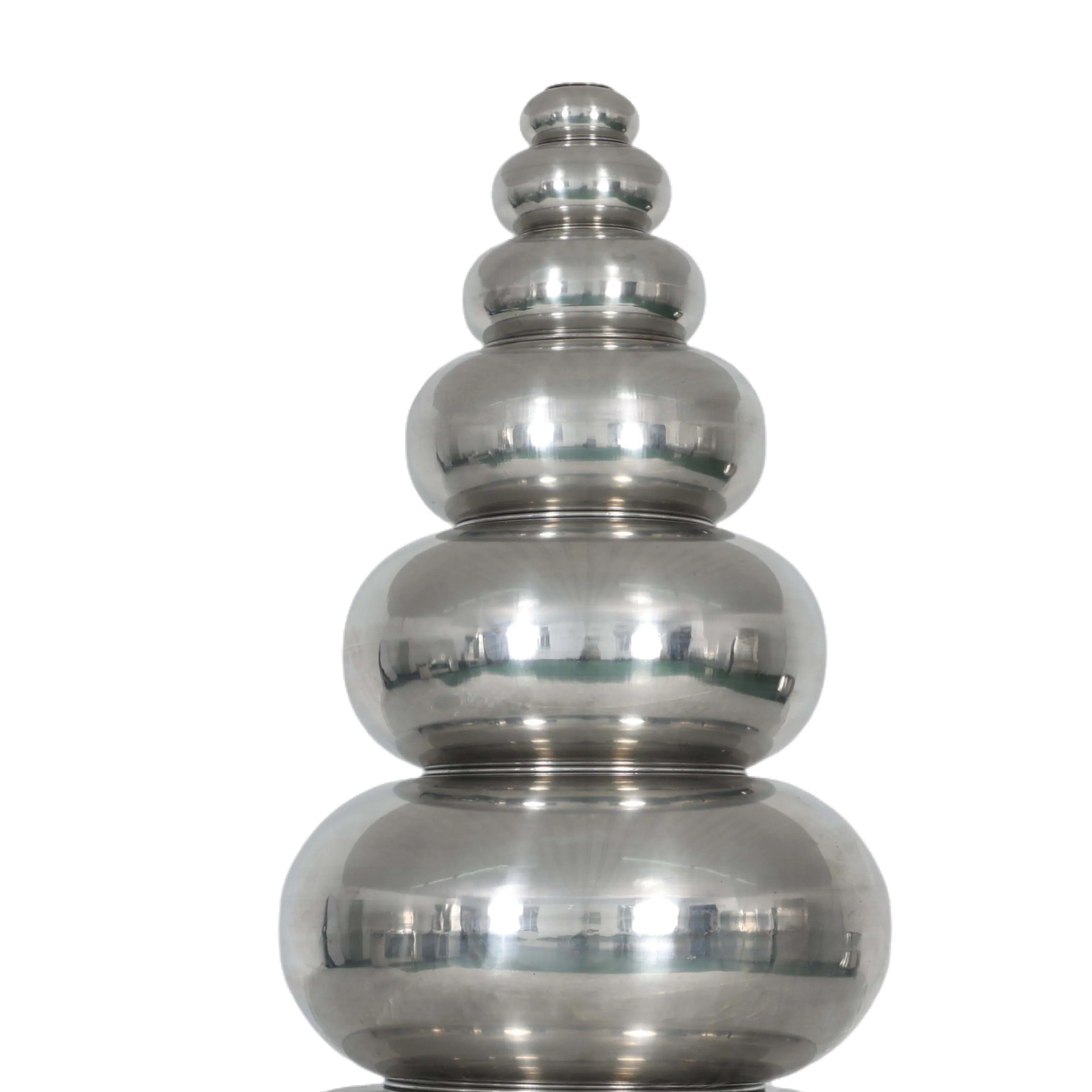

Model NO.
200/300/400/600/800/1000/1250/1500
Material
304 Stainless Steel
Application
Candy, Chocolate, Popcorn, Pills, Nuts
💎Product Description

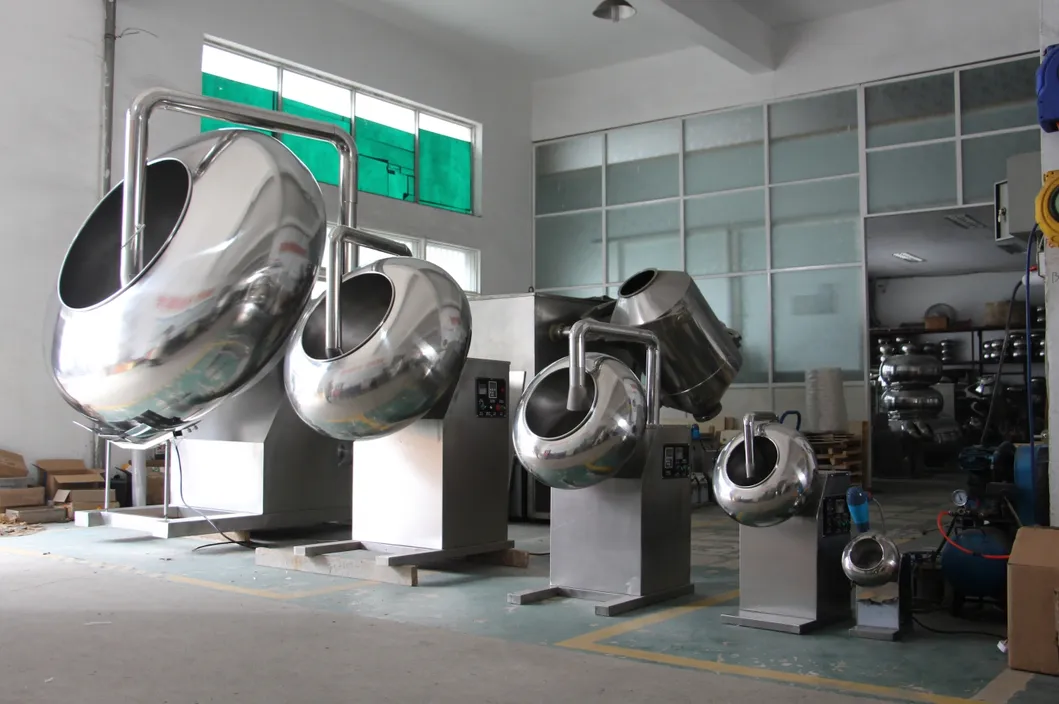

Sugar coating machine is mainly used for coating film for tablet, pill and granule in pharmaceutical industry. The coated tablets have bright surface, which can prevent oxidation, damp or volatilization and can also cover the uncomfortable taste. This makes medicine easily identified and eases dissolution. It is also widely applied in food plants for coating nuts, beans, sugar, or chocolate peanuts.
⚙️Working Principle

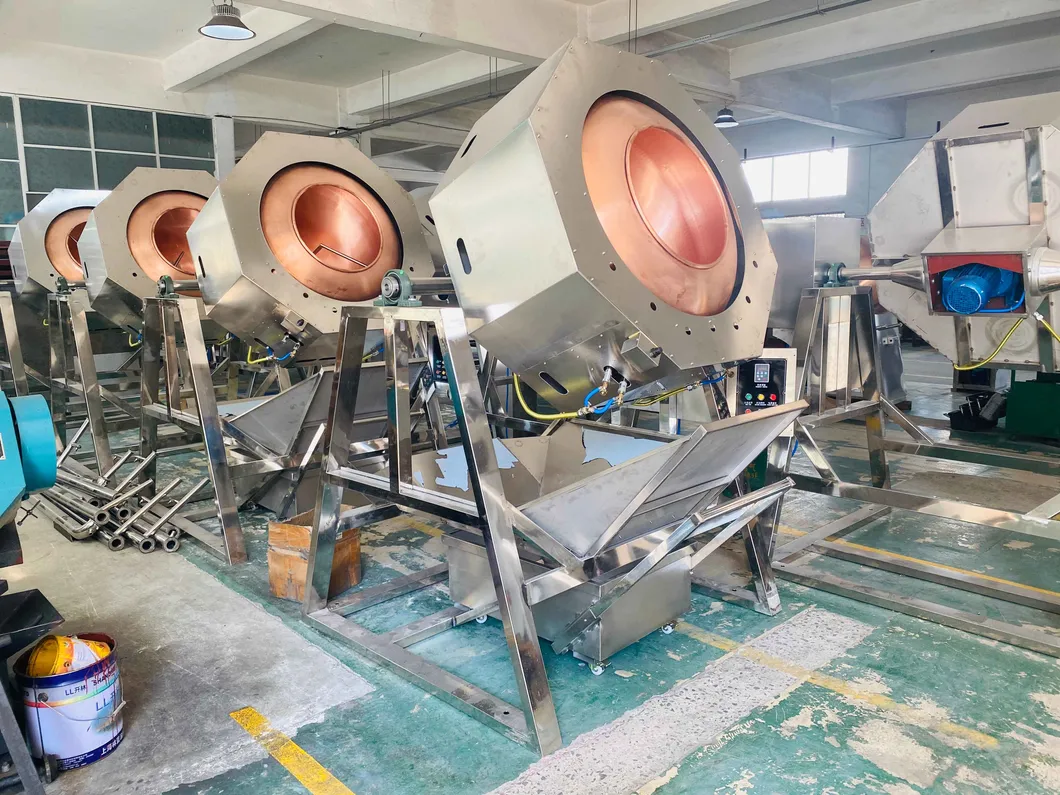

Clockwise rotation of the pan makes materials roll and slide. Powder or liquid is added to spread evenly on the target materials. An electric blower attached to the machine provides heat via an air outlet pipe extending into the pan. Hot air removes surface moisture, resulting in a solidified, polished coating.
📊Product Parameters
| Model |
Diameter (mm) |
Rotary Speed (rpm) |
Motor (kw) |
Blower (kw) |
Heat (kw) |
Capacity (kg) |
Weight (kg) |
| BY-300 | 300 | 0-75 | 0.12 | 0.04 | 0.6 | 1-3 | 21 |
| BY-400 | 400 | 0-75 | 0.12 | 0.04 | 0.6 | 3-7 | 23 |
| BY-600 | 600 | 27-46 | 0.75 | 0.1 | 0.9 | 10-25 | 97 |
| BY-800 | 800 | 18-30 | 1.1 | 0.25 | 4 | 30-50 | 215 |
| BY-1000 | 1000 | 18-30 | 1.5 | 0.25 | 4 | 50-70 | 220 |
| BY-1250 | 1250 | 16-28 | 2.2 | 0.37 | 6 | 70-150 | 350 |
| BY-1500 | 1500 | 12-20 | 5.5 | 0.37 | 9.6 | 100-350 | 620 |

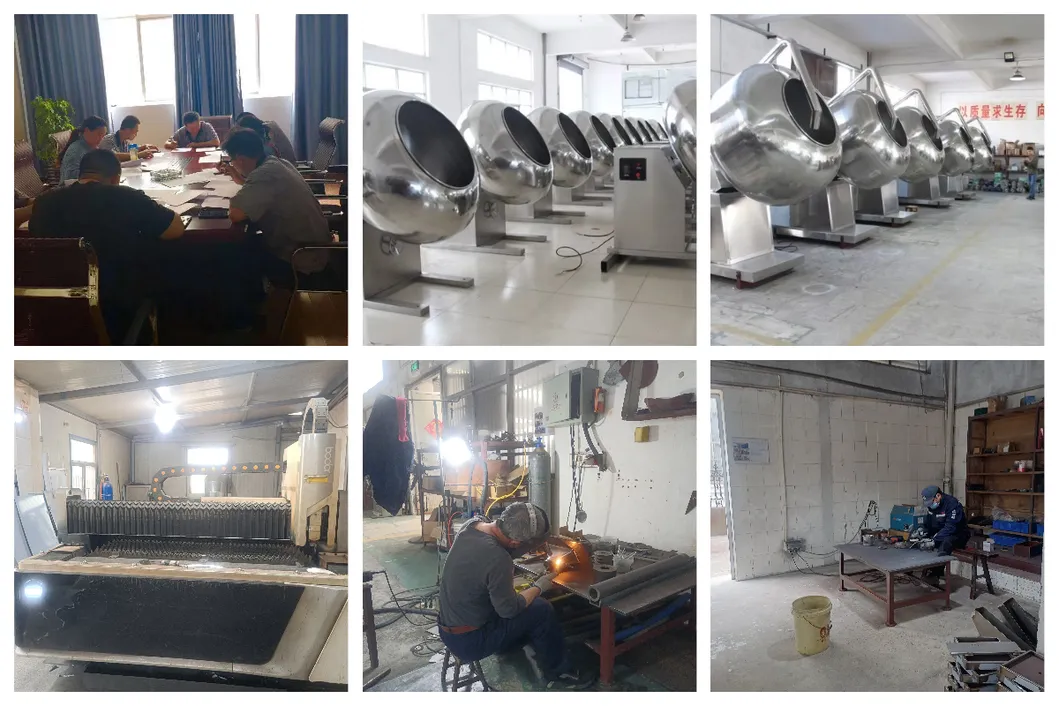

🏭Professional Manufacturer

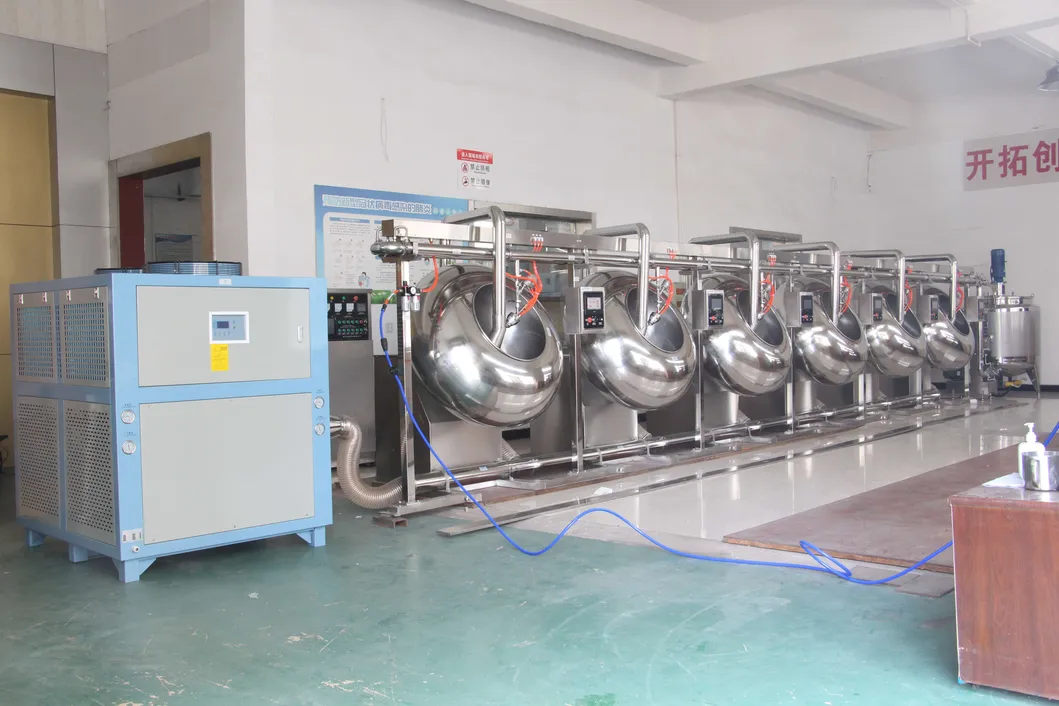

As a professional manufacturer engaged in research, development, and production, we offer high-quality coating pan machinery, mixers, grinders, and drying machines. These systems are widely used across the food, chemical, and pharmaceutical industries. Our engineering team has designed and CE-approved full chocolate coating pan systems featuring special chocolate mixing tempering tanks, spraying, and cooling devices. Our equipment has been successfully exported globally, earning trust through excellent quality and reliable service.
❓Frequently Asked Questions
1. What materials are the coating pans made of?
The machine is constructed with high-quality 304 stainless steel, ensuring durability and compliance with food safety standards.
2. Can the rotation speed of the pan be adjusted?
Yes, models come with adjustable rotary speeds to suit different coating requirements and material types.
3. What is the typical lead time for an order?
Standard machines are generally ready for dispatch within 15 days after receipt of the prepayment.
4. How is the machine packaged for international shipping?
We use standard export wooden cases to protect the machinery from damage during transit.
5. What is the warranty policy?
We provide a 1-year warranty covering core components, excluding man-made damage.
6. What are the payment terms?
Our standard payment method is T/T 50% in advance, with the remaining balance paid before shipping.
